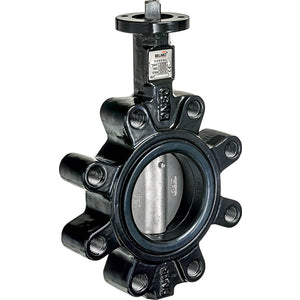

D6100NL

Butterfly valve, 2-way, DN 100, Lug types PN 10 / 16, ps 1600 kPa, Kvs 150 m³/h, Kvmax 520 m³/h, Fluid temperature -10...120°C [14...248°F]

Valve Specifications

• Pattern:
  2-way

• kvs:
  150 m³/h

• Fluid:
  Cold and warm water, water with glycol up to a maximum of 50% vol.

• Fluid Temperature:
  -10 to 120°C (14 to 248°F)

• Flow Characteristic:

  • 0 to 100%: S-form
  • 0 to 60%: Equal percentage

• Leakage Rate:
  Tight, leakage rate A

• Pipe Connection:
  Flange
