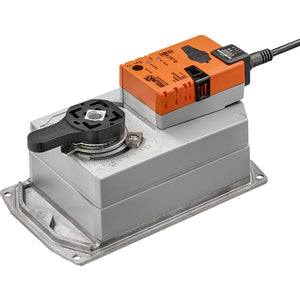

DR24A-5

Rotary actuator, Max. 90 Nm (not constant), AC/DC 24 V, Open/close, 150 s, IP54, F05

Actuator

• Voltage AC/DC:
  AC/DC 24 V

• Power Consumption (running):
  4 W

• Power Consumption (holding):
  2 W

• Power Consumption For Wire Sizing:
  6 VA

• Connection Supply Control:
  Cable 1 m, 3x 0.75 mm²

• Torque:
  Max. 90 Nm

• Control Type:
  Open/close

• Manual Override:
  With push-button, can be locked

• Running Time (motor):
  150 s / 90°

• Protection Category:
  IP54

• Degree Of Protection NEMA:
  NEMA 2

• Enclosure Type:
  UL Enclosure Type 2

• Ambient Temperature:
  -30...50°C [-22...122°F]
