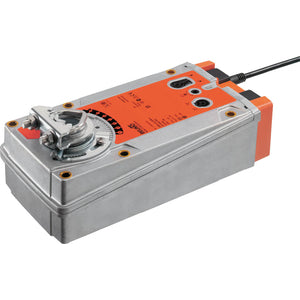

EF24A-SR

Electrical Actuator

• Voltage AC/DC:
  AC/DC 24 V

• Power consumption (running):
  7 W

• Power consumption (holding):
  4.5 W

• Power Consumption For Wire Sizing:
  12 VA

• Connection Supply Control:
  Cable 1 m, 4x 0.75 mm² (halogen-free)

• Torque:
  30 Nm

• Control type:
  DC 2...10 V

• Direction Of Motion Motor:
  Selectable with switch L/R

• Direction of rotation (fail-safe):
  Selectable by mounting L/R

• Manual override:
  By means of hand crank and locking switch

• Angle of rotation:
  95°

• Running time (motor):
  150 s / 90°

• Running time (fail-safe):
  <20 s

• Mechanical interface:
  Universal shaft clamp 12...26.7 mm

• Protection category:
  IP54

• Ambient Temperature:
  -30...50°C [-22...122°F]
