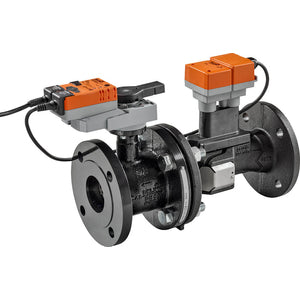

EP080F+KMP

Valve

• Pattern:
  2-way

• V'nom [l/s]:
  11

• Flow Rate Adjustable:
  30...100% of V'nom

• Fluid:
  Cold and warm water, water with glycol up to max. 50% vol.

• Fluid Temperature:
  -10...120°C [14...248°F]

• Close-off Pressure:
  690 kPa

• Differential Pressure Δpmax:
  340 kPa

• Flow Characteristic:
  Equal percentage

• Leakage Rate:
  Air-bubble tight, leakage rate A

• Pipe Connection:
  Flange

Actuator

• Voltage AC/DC:
  AC/DC 24 V

• Power Consumption (running):
  10 W

• Power Consumption (holding):
  5 W

• Power Consumption For Wire Sizing:
  20 VA

• Connection Supply Control:
  Cable 1 m, 4x 0.75 mm²

• Control Type:
  MP-Bus
  DC 2...10 V
  DC 0.5...10 V

• Protection Category:
  IP54
