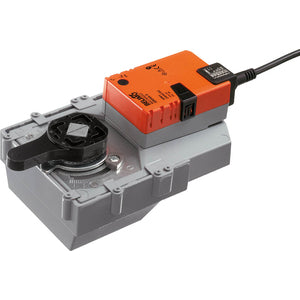

GRC230A-5

Voltage AC/DC:
AC 100...240 V

Power consumption (running):
6 W

Power consumption (holding):
1 W

Power Consumption For Wire Sizing:
11 VA

Connection Supply Control:
Cable 1 m, 3x 0.75 mm²

Torque:
40 Nm

Control type:
Open/close

Manual override:
With push-button, can be locked

Running time (motor):
35 s / 90°

Protection category:
IP54

Degree Of Protection NEMA:
NEMA 2

Enclosure Type:
UL Enclosure Type 2

Ambient Temperature:
-30...50°C [-22...122°F]
