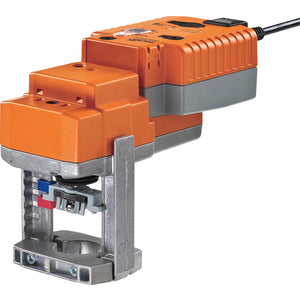

NVK230A-3
by Belimo
Original price
€557,95
-
Original price
€557,95
Original price
€557,95
€557,95
-
€557,95
Current price
€557,95
Globe valve actuator fail-safe NC / NO, 1000 N, AC 100...240 V, 3-point, 150 s, Stroke 20 mm, IP54
Actuator
Voltage AC/DC:
AC 100...240 V
Power Consumption (Running):
2 W
Power Consumption (Holding):
1 W
Power Consumption for Wire Sizing:
4.5 VA
Connection Supply Control:
Cable 1 m, 4x 0.75 mm²
Force:
1000 N
Control Type:
3-point
Manual Override:
With push-button
Stroke:
20 mm
Running Time (Motor):
150 s / 20 mm
Running Time (Fail-Safe):
35 s
Protection Category:
IP54
Degree of Protection NEMA:
NEMA 2
Enclosure Type:
UL Enclosure Type 2
Ambient Temperature:
0...50°C [32...122°F]
