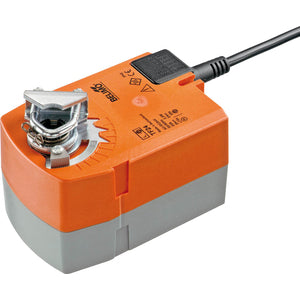

TF24

Rotary actuator fail-safe, 2.5 Nm, AC/DC 24 V, Open/close, 75 s, IP42

Temperature Sensor

Voltage AC/DC
AC/DC 24 V

Power consumption (running)
2.5 W

Power consumption (holding)
1.5 W

Power Consumption For Wire Sizing
5 VA

Connection Supply Control
Cable 1 m, 2 x 0.75 mm²

Torque
2.5 Nm

Control type
Open/close

Direction Of Motion Motor
Selectable by mounting L/R

Direction of rotation (fail-safe)
Selectable by mounting L/R

Manual override
No

Angle of rotation
95°

Running time (motor)
75 s / 90°

Running time (fail-safe)
<25 s

Mechanical interface
Universal shaft clamp 6...12.7 mm

Protection category
IP42

Ambient Temperature
-30...50°C [-22...122°F]
